This is a 15-inch projected capacitive touch panel that realizes precise touch control based on human body capacitance sensing, supporting up to 10-finger multi-touch. It adopts a stable Glass/Glass double-glass structure, featuring high sensitivity, high reliability and wide temperature adaptability. As a core interactive component for industrial control, automotive terminals, commercial displays, intelligent equipment and other scenarios, it is designed for stable delivery in mass production.
▪ 10-point precise multi-touch: Native support for 10-point touch, report rate＞100Hz, line drawing accuracy ±1.5mm/10mm, point touch accuracy ±1.5mm, no delay in operation and accurate positioning.
▪ High-definition optical display: Transmittance of 85±5% at 550nm wavelength, haze≤3%, transparent picture and realistic color restoration.
▪ High scratch resistance and durability: Surface pencil hardness≥6H, scratch and wear resistance, no easy marks after long-term use.
▪ Stable operation in wide temperature range: Operating temperature -20℃~+70℃, storage temperature -30℃~+80℃, humidity 45%~85%RH, touch function remains effective in high and low temperature environments.
▪ Strong anti-interference: Strong resistance to static electricity and electromagnetic interference after standard grounding, stable touch without drift or failure.
▪ Mass-production reliability: Passes strict reliability tests such as ball drop, high and low temperature cycle, constant temperature and humidity, with good batch consistency.
| Item | Specification |
|---|---|
| Part Number | 564615-1 |
| Spec Version | V4.0 (Mass-Production Version) |
| Panel Size | 15 inch |
| Touch Type | Projected Capacitive, max 10-point touch |
| Structure | Glass/Glass |

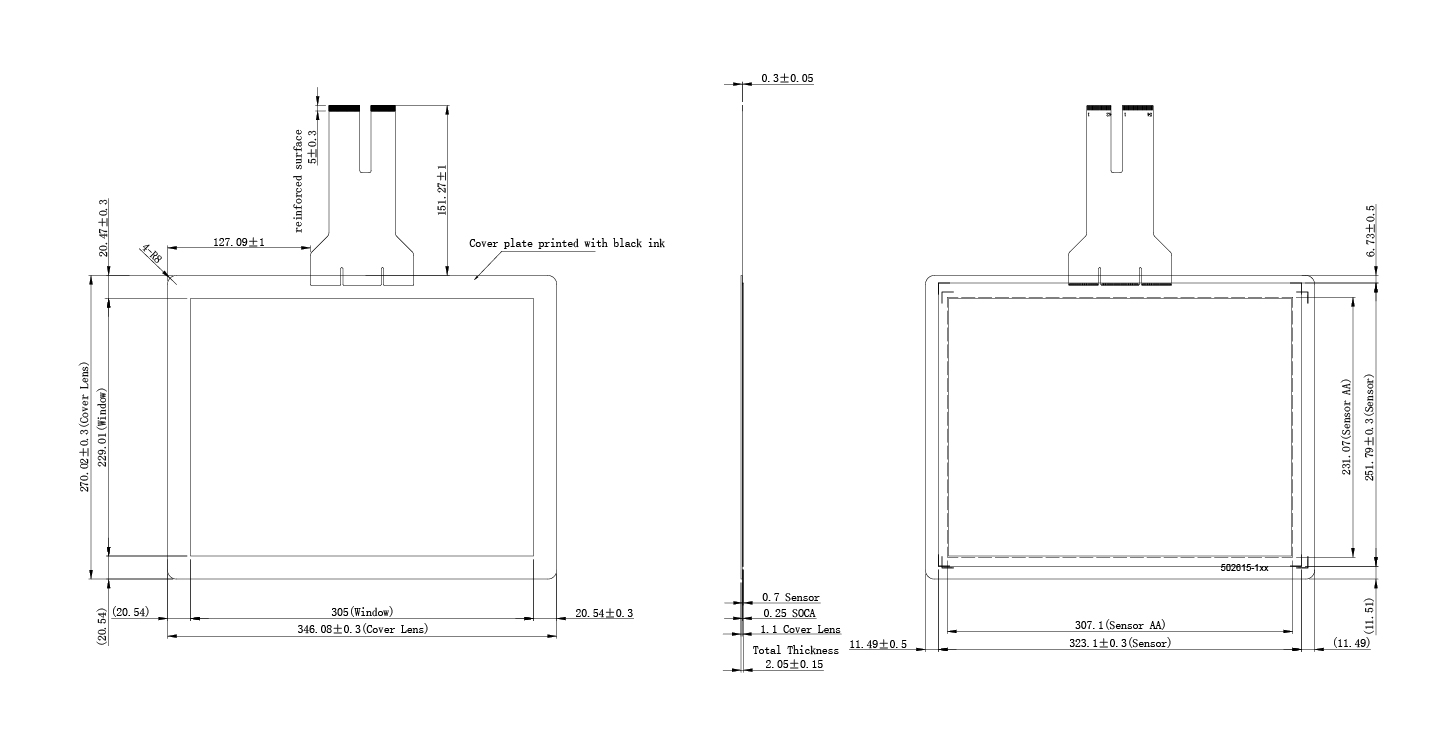

| Total Thickness | 2.05±0.15 mm (Cover 1.1 mm & Sensor 0.7 mm) |
| FPC/COF Thickness | 0.3±0.05 mm |
| Operating Temp./Humidity | -20℃~+70℃, 45%~85%RH |
| Storage Temp./Humidity | -30℃~+80℃, 45%~85%RH |
| Input Method | Finger / Capacitive Stylus |
| Touch Accuracy | Line drawing: ±1.5mm offset /10mm; Point touch: ±1.5mm |
| Report Rate | ＞100 Hz |
| Transmittance | 85±5% (at 550nm) |
| Haze | ≤3% (Maximum) |
| Surface Hardness | ≥6H (Pencil Hardness, 1N/45°) |
| Ball Drop Test | 64g±2g steel ball, 60cm height, no damage |
| FPC Peeling Strength | ≥500gf/cm (90°, 50mm/min) |
| Constant Temp. & Humidity | 60℃/90%RH, 240h |
| Thermal Shock | -30℃~+80℃, 50 cycles, 30min/cycle |
| High Temp. Storage | +80℃, 240h |
| Low Temp. Storage | -30℃, 240h |
| Grounding | Must be effectively grounded |
| Warranty | 1 year under normal operation |
| Environmental Standard | Complies with RoHS |
